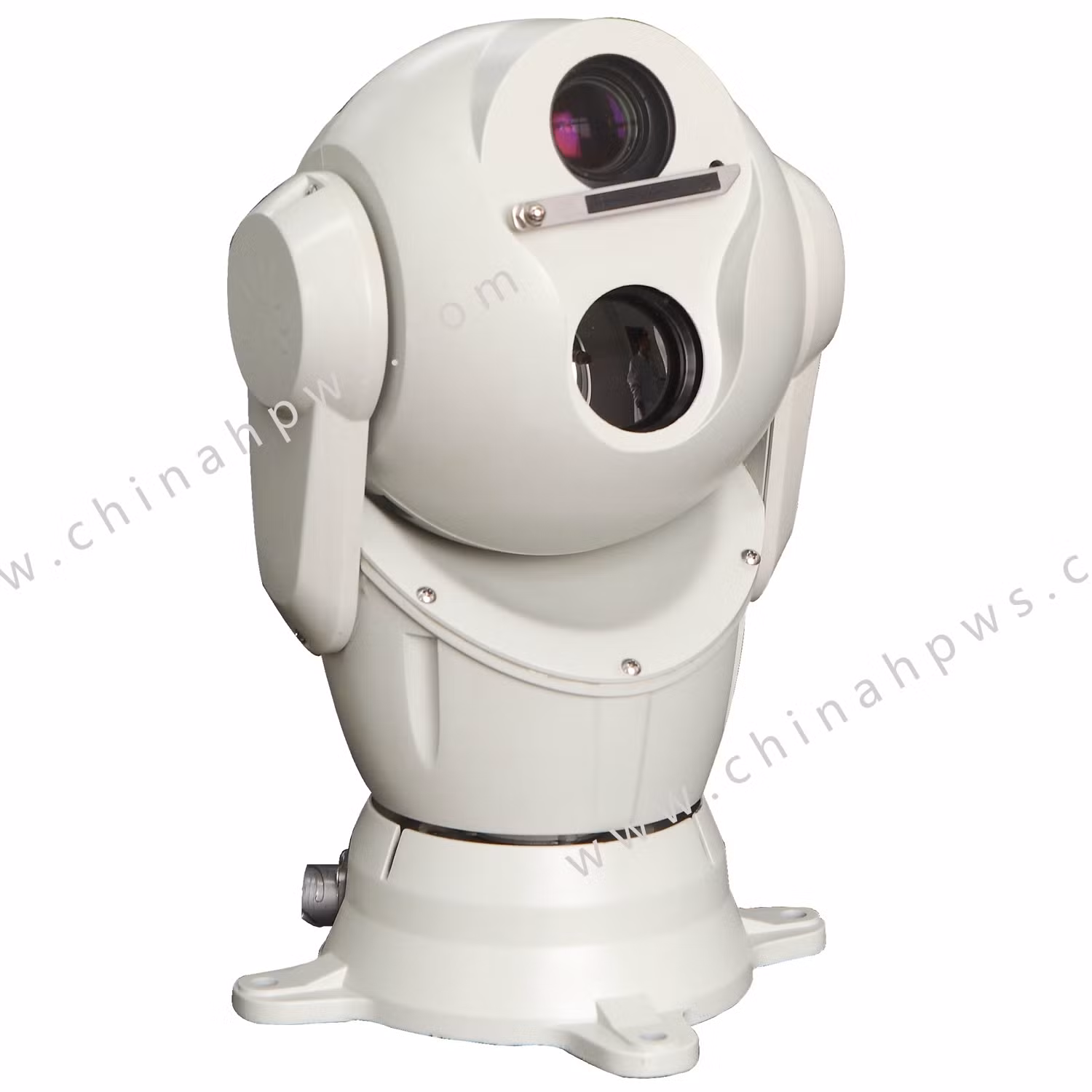

ETVC41 dual channel vehicle-mounted dome camera
Feature:
1.Small size integrated camera works in day time,zooming fast and auto focusing.
2.NETD of the thermal camera up to 50mk;
3.Special AS optical technology and high-precision optomechanical design enhance the image quality;
4.5th generation small size sensor.On basis of same imaging quality,the 5th generation sensor only have half size of the 4th generation sensor.
5.All metal cooling structure,CGS cooling system and double sun block,night vision module cycle air-cooling;
6.Electric motor drive,reaction quick,rotation smoothly,tolerance less than 0.1°;
7.Address and protocol DIP switch is on the side;
8.IP66 weatherproof,waterproof,anti-dust.
Application:
Vehicle-mounted monitoring,railway&freeway security,city safety,seaport&airport security,large gymnasium,plazas,the scenic spot monitoring.
Feature:
1.Small size integrated camera works in day time,zooming fast and auto focusing.
2.NETD of the thermal camera up to 50mk;
3.Special AS optical technology and high-precision optomechanical design enhance the image quality;
4.5th generation small size sensor.On basis of same imaging quality,the 5th generation sensor only have half size of the 4th generation sensor.
5.All metal cooling structure,CGS cooling system and double sun block,night vision module cycle air-cooling;
6.Electric motor drive,reaction quick,rotation smoothly,tolerance less than 0.1°;
7.Address and protocol DIP switch is on the side;
8.IP66 weatherproof,waterproof,anti-dust.
Application:
Vehicle-mounted monitoring,railway&freeway security,city safety,seaport&airport security,large gymnasium,plazas,the scenic spot monitoring.
| Model | ETVC4102-1920-S | ETVC4104-1920-S |
| Detection distance* | For car: 1700m For human:720m | For car: 3400m For human:1400m |
| Recognition distance* | For car: 420m For human: 180m | For car: 840m For human: 360m |
| Thermal sensor | 336X256 pixel, 5th generation uncooled FPA, 50mk NETD, 7.5-14um spectral range | |
| Thermal lens | 20mmF1.0 | 40mmF1.0 |
| Field of view | 15.5°X 11.6° | 8°X 6° |
| Visible CCD | 2 mega pixel, 1/4'' 0.01lux color to B/W CCD | |
| Visible lens | 3.4mm~122.4mm, 36 optical zoom, auto focus | |
| Rotation range | Pan: 360° continuously, Tilt: -60°~+90° | |
| Rotation speed | Pan: 0.01°~100°/s,Tilt: 0.01°~90°/s, focal length and speed automatically match | |
| Preset | 256, memory record after power breakdown | |
| Auto mode | 6 path protocol/4 path line scan/1 path auto scan | |
| Path pattern | 1 path,total recording time 160sec | |
| Auto watch | Homing time/preset/protocol/line scan | |
| Menu | OSD menu, Chinese and English menu setting | |
| Compass | Compass, after setting the north direction, camera could calculate the other directions | |
| Wiper | Support point and correlation model | |
| Protocol | Auto identify PELCO-D/P and other main protocol | |
| Baud rate | 2400/4800/9600/19200bps | |
| Weather proof | IP66,TVS1500V anti-lighting,anti-surge | |
| Operational environment | -30~55ºC,<90%RH non-condensing | |
| Power supply | DC10V-18V | |
| Weight and size | Φ230(mm)×348(mm),5kg | |
